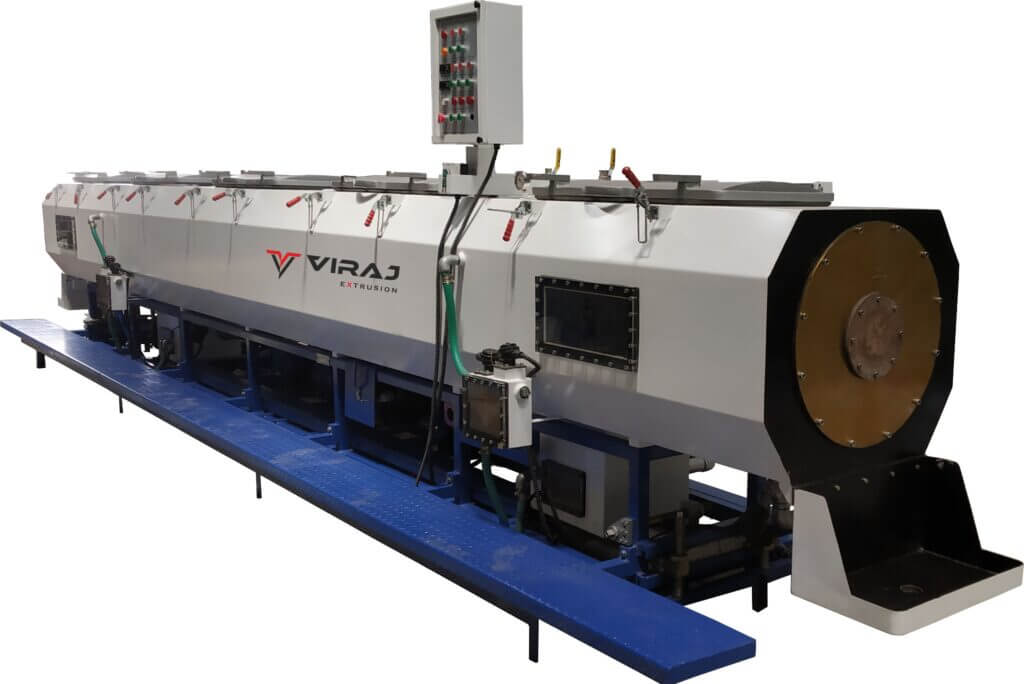

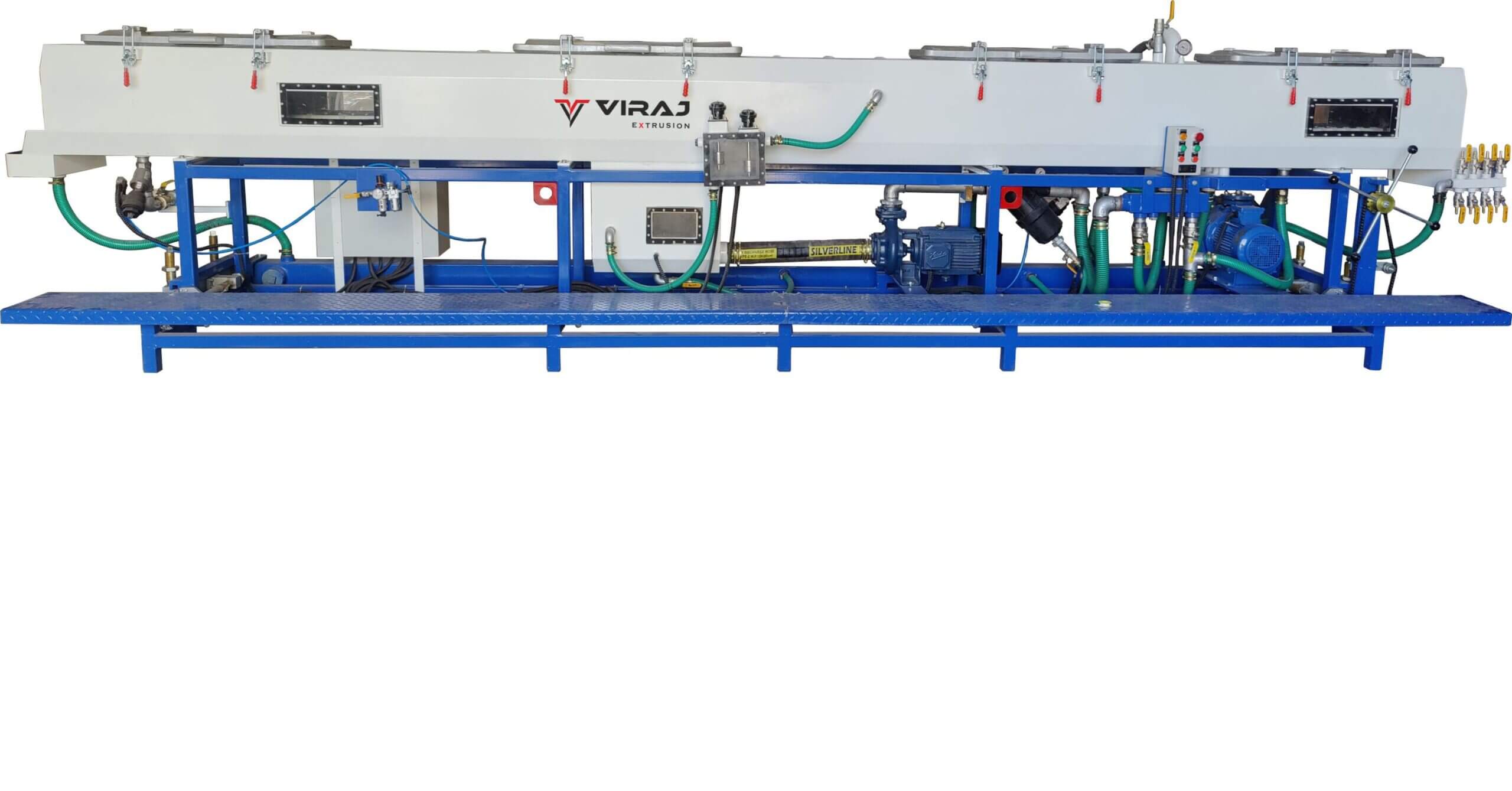

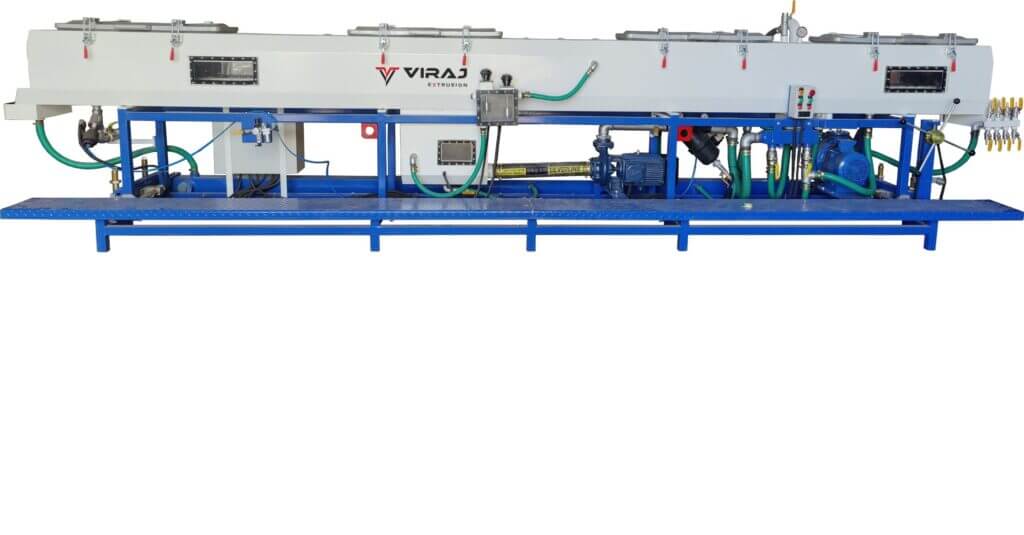

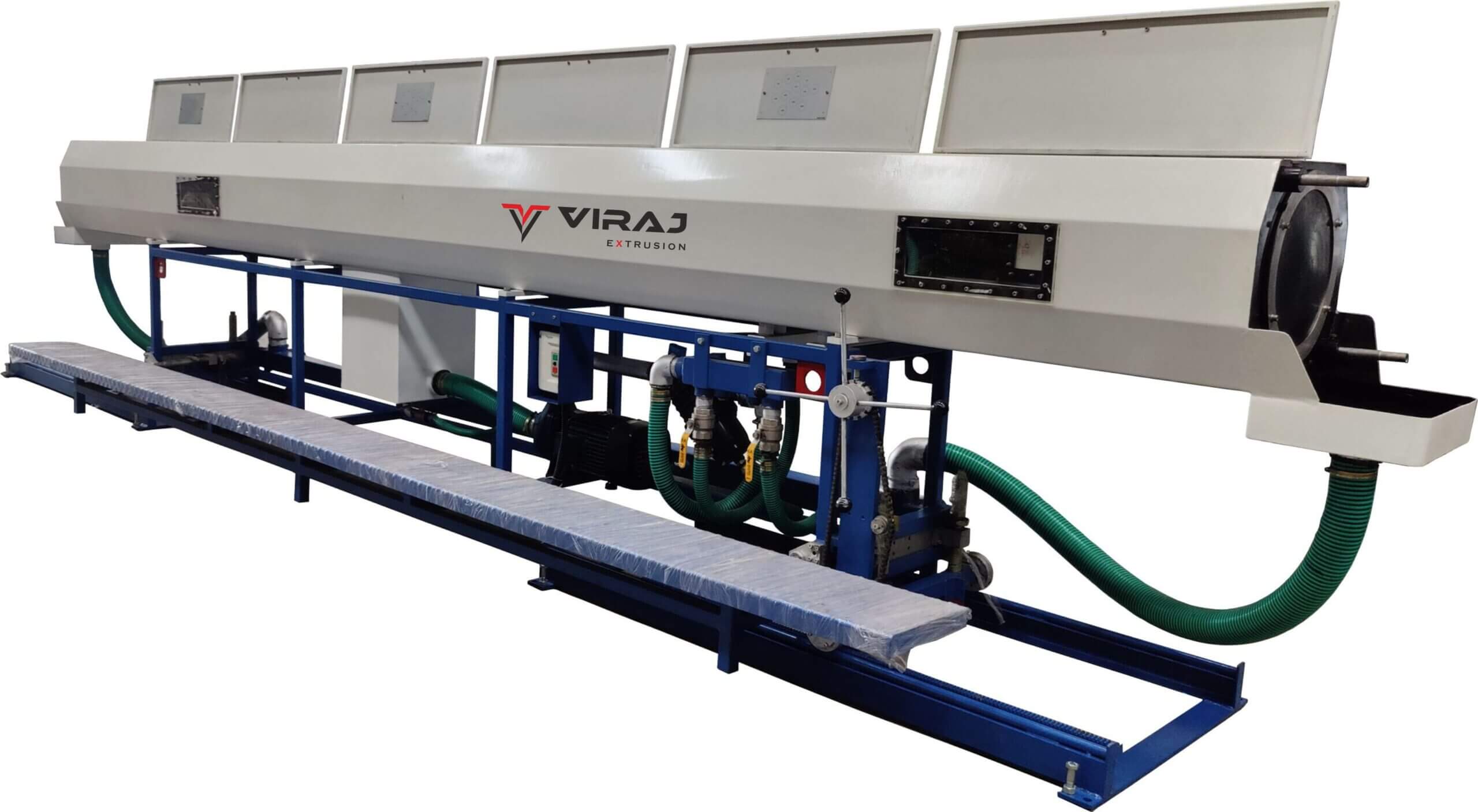

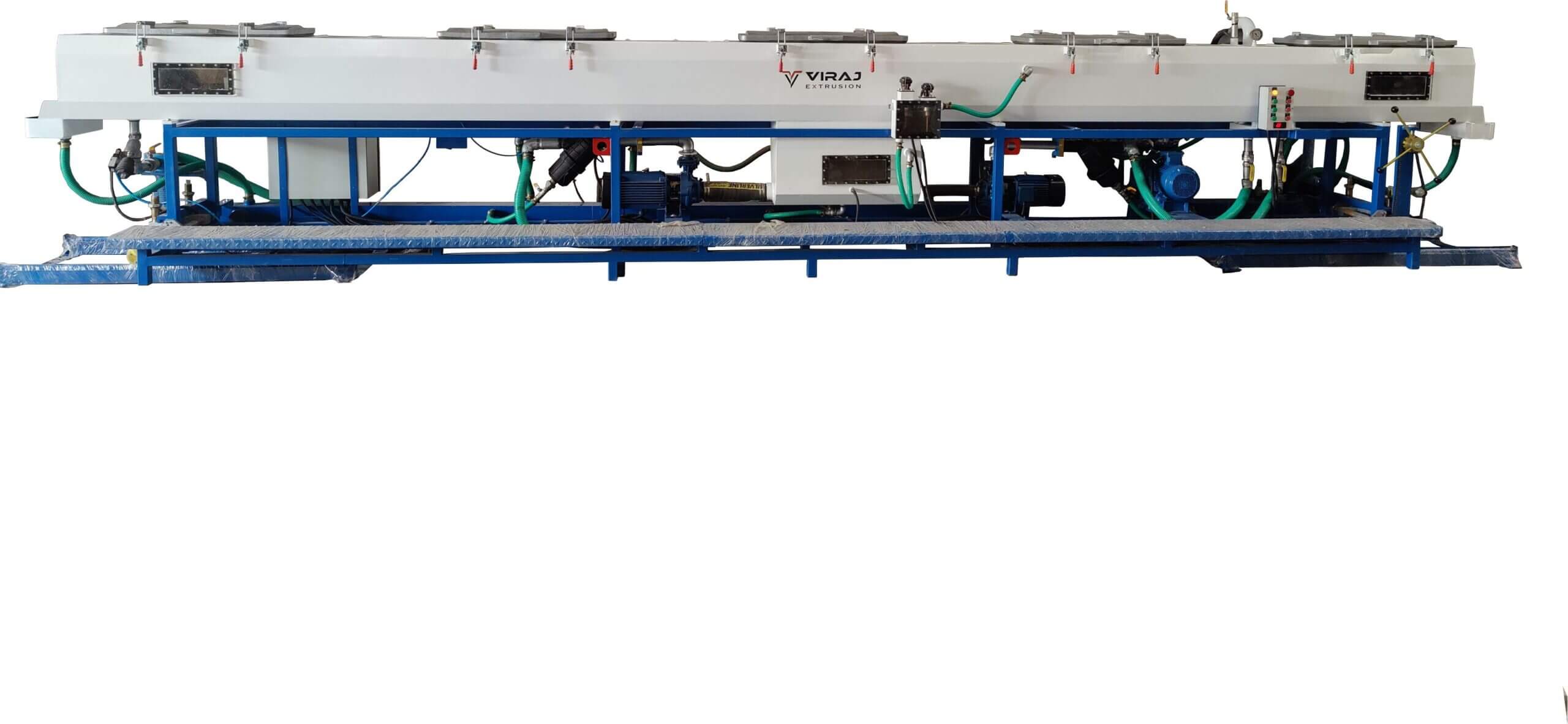

Vacuum Calibration Tank
Viraj Extrusion offers the Vacuum Calibration Tank for perfect sizing and rapid cooling of pipes. Vacuum Calibration Tank and Pressure Sizing tanks are built form Stainless steel SS 304 grade hence no scope of corrosion resulting a long Operational Life. A temperature of the calibration tank is maintained at a desire value by Thermostat and Auto level Sensor.
| MODEL | VVST - 75 | VVST 110 | VVST-200 | VVST 250 | VVST-315 | VVST 450 | VVST 630 |
|---|---|---|---|---|---|---|---|
| Pipe Range (mm) | 20 – 75 | 20-110 | 20-200 | 20-250 | 75-315 | 110-450 | 110-630 |
| Length of Tank (mm) | 4000 – 6000 | 4000- 6000- 8000 | 4000- 6000- 8000 | 6000- 8000 | 6000- 8000 | 6000- 8000 | 6000- 8000 |
| Number of Vacuum Chamber | Single | Single | Single/ Double | Single/ Double | Double | Double | Double |
Advantage
- Tank are made from Stain Steel SS 304 Material so Corrosion Free Operation.
- Water level Sensor with Thermostat for Hot Water Out and Cold Water In.
- Tank Longitude Movement by Manual / Motorized.
- Pneumatic operated angle sheet valve resulting in jerk less operation with precise water level.
- 6 way adjustment of tank by manually.
- Self Cleaning Spray Nozzles.
- Special design Spray Nozzles having 120 degree sprinkle for rapid cooling.
- Pressure Gauge on Water Filter for easy checking of water blockage.
- Single chamber and Double chamber Option.
- Energy efficient Kirloskar make Spray pump for Higher Cooling Ratio.
- Adjustable Spray pipe angle to set the specific cooling angle for covering smaller diameter pipe to Bigger One.
- Double Vacuum tank on single rail or on individual rail for Dual pipe production.
