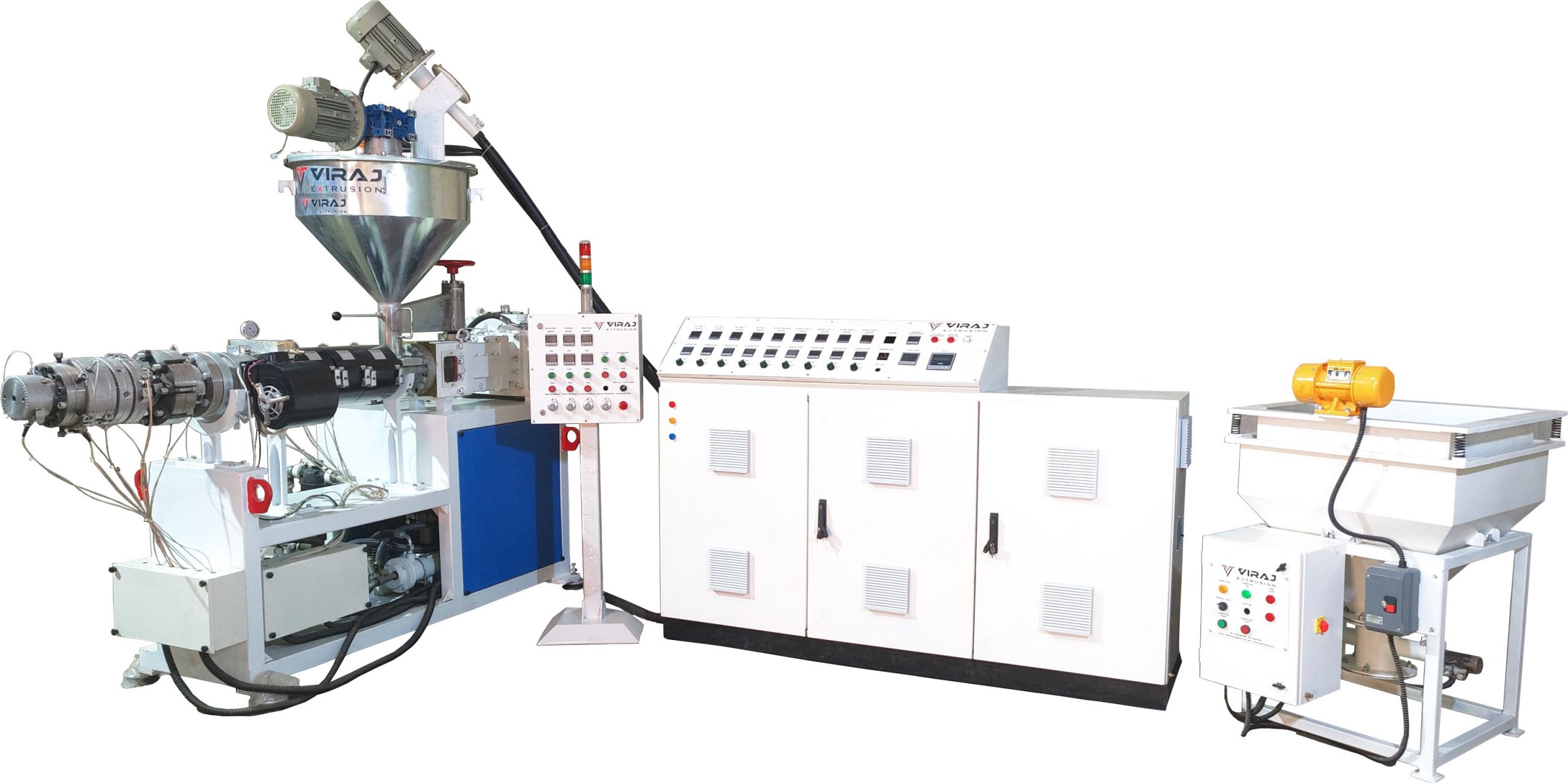

Twin Parallel Screw Pipe Extrusion
Viraj Extrusion offers VTS Series ‒ Twin screw pipe extrusion lines for PVC, UPVC, CPVC AND SWR pipes. VTS series Twin Screw Extruders are crucial for the efficient extrusion of quality PVC pipes. A wide range of products are made on these extruders. Twin Screw Extruders are made with wide ranging from Screw diameters 52 mm to 90 mm to give output ranges from 110 to 550 kgs/hr.
| Models | VTS - 110 | VTS - 170 | VTS - 200 | VTS - 250 | VTS - 350 | VTS - 400 | VTS - 450 | VTS - 550 |
|---|---|---|---|---|---|---|---|---|
| Extruder Drive (kW) | 11 | 15 | 22 | 30 | 37 | 45 | 56 | 56 |
| Screw Dia (mm) | 52 | 52 | 65 | 65 | 68 | 72 | 90 | 90 |
| L.D. Ratio | 18:1 | 25:1 | 18:1 | 22:1 | 28:1 | 28:1 | 22:1 | 25:1 |
| Output (Kg/Hour) | 100-110 | 150-170 | 180-200 | 220-250 | 320-350 | 350-390 | 420-450 | 520-550 |
| Pipe Range (mm) | 20-110 | 20-200 | 20-200 | 63-250 | 110-315 | 110-315 | 110-400 | 110-400 |
Features & Advantages
- Next Generation Machine
- Special screw design - Increased material throughput at lower screw speeds
- Superior end product quality
- Higher outputs at lower power consumption.
- Synchronization of extruder, force feeder and traction with high rated AC drives.
- Maintenance free self-regulating screw cooling system.
- Vertical force feeder system for continuously and uniformly feeding to extruder.
- Front barrel with HSS sleeve.
- PLC control on request
- Achieves uniform pumping
- All bought used are from reputed top brands.
