Tube Tracking Unit
The Haul off unit grips and pulls the pipe over a long length at a constant speed. The haul off unit is available in various models as per the pipe application and size with respect to number of gripping belts and gripping length. Both the Gripping belts are adjustable, upper belt is pneumatically and bottom belt is mechanically adjustable.

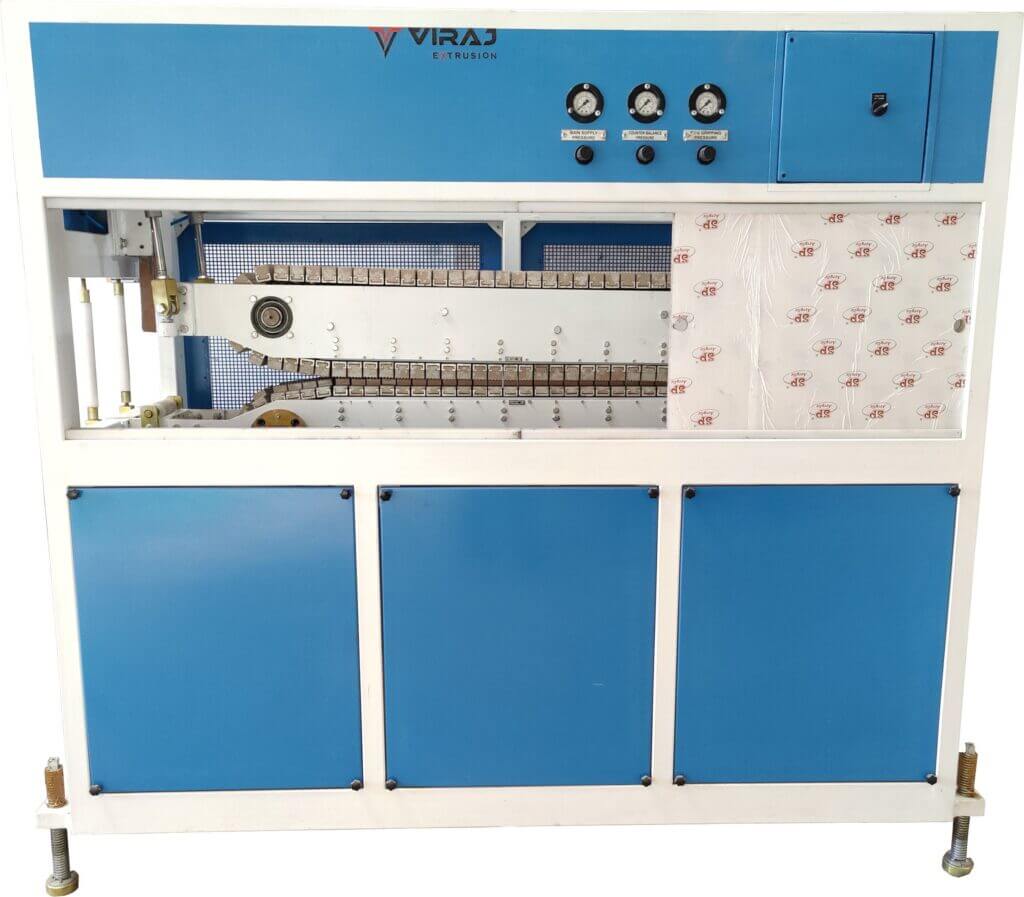

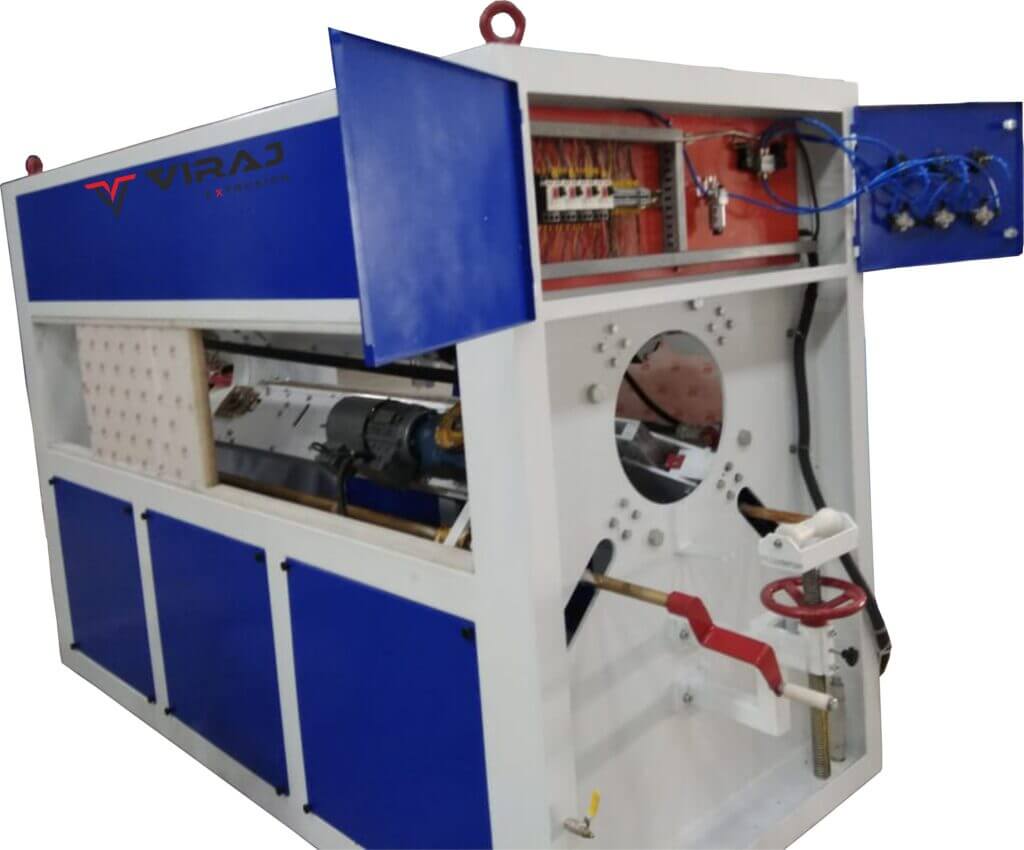

| MODELS | TTU-75 | TTU-110 | TTU-200 | TTU-250 | TTU-315 | TTU-450 | TTU-630 |
|---|---|---|---|---|---|---|---|
| PIPE RANGE (MM) | 20 TO 75 | 20 TO 110 | 20 TO 200 | 20 TO 250 | 63 TO 315 | 110 TO 450 | 110 TO 630 |
| NO. OF GRIPPING BELT | 2 | 2 | 2 | 2 | 3 – 4 | 4 | 4 – 6 |
| PIPE GRIPPING LENGTH | 700 | 1000 | 1300 | 1300 | 1500 | 1700 | 1700 |
| LINE SPEED (M/MIN) | 15 | 15 | 10 | 10 | 10 | 7 | 5 |
Features & Advantages
- Double Belts / Multi Belts Haul Off 3/4/6 belts available for optimum pulling force and to prevent ovality even for larger diameter and thin wall pipes.
- Individual Gear motor system for maintenance free operation.
- Easily removable Graded Harden rubber pads for longer life.
- Reputed make Chain for Gripping belt for longer life.
- Synchronize with any type of extruders.
- Track Griping and counter balance by pneumatic control for thinner and thicker wall thickness pipes.
- Both Motors are synchronized with extruder and feeder motor with AC drive so Line speed can adjusted.
- Dual Haul Off for Dual Pipe Extrusion Line.
- Encoder for length measurement and feedback offered optionally.
- PLC for Thick Thin pipe as on request.
- State of the art Electrical Panel with control unit.
