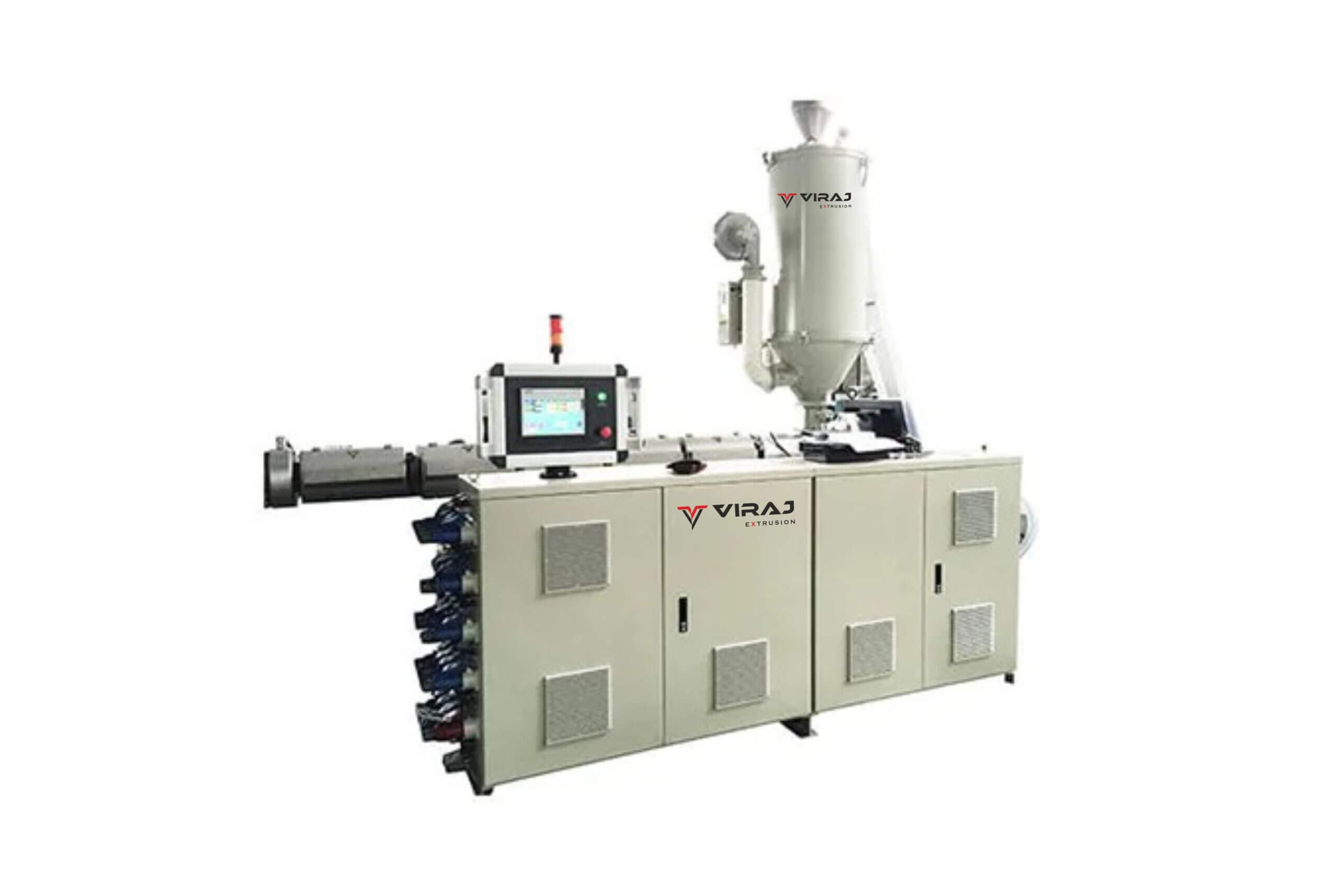

Single Screw Pipe Extrusion
Viraj Extrusion introduces Single Screw Pipe Extrusion Line for the HDPE & PPR pipe Production. Special Single Screw design with Groove feed bush for higher through output up to 800 kg/hr.
| Models | VHS 45*22 | VHS 45*45 | VHS 45*55 | VHS 45*75 | VHS 45*90 | VHS 60*110 | VHS 60*132 | VHS 75*200 | VHS 75*250 |
|---|---|---|---|---|---|---|---|---|---|
| Screw Diameter in mm | 45 | 45 | 45 | 45 | 45 | 60 | 60 | 75 | 75 |
| L : D Ratio | 37:01:00 | 37:01:00 | 37:01:00 | 37:01:00 | 37:01:00 | 37:01:00 | 37:01:00 | 37:01:00 | 37:01:00 |
| Main Motor kw | 22 | 45 | 55 | 75 | 90 | 110 | 132 | 200 | 250 |
| Max. Output Kg/hr | 60-80 | 140-160 | 180-190 | 220-240 | 300-330 | 380-400 | 500-550 | 650-700 | 800-850 |
Features & Advantages
- Special High Speed Series.
- Special Groove Feed Design for Higher Output.
- Very Low Start up Waste.
- Lower Energy Consumption and Higher Output.
- Long Operational Life.
- Wider Range of processing application due to longer L/D ratio.
